4 Core ODC Plug / Socket To LC Fiber Optical Patch Cord Cable Assembly

Product Categories
CFOFC Communications Ltd.
Contact Now

4 Core ODC Plug / Socket To LC Fiber Optical Patch Cord Cable Assembly

  • 1
  • 2
  • 3

Brand Name : CFOFC

Model Number : CFOFC-FTTH- 4 core ODC

Certification : ISO9001/ REACH / ROHS

Place of Origin : Shenzhen, China

MOQ : 10Pcs

Price : Negotiable

Payment Terms : L/C, T/T,Paypal, Western Union

Supply Ability : 30,000 pcs per month

Delivery Time : 5-8 work days

Packaging Details : Individual Pack , plus outer cartons

Type : 4 core ODC Plug

Fiber type : SM

Fiber Core : 2

Cable OD : 2.0

Connector : LC

Jacket : LSZH,TPU,PE

Contact Now

4 Core ODC Plug FTTA Patch Cord

Description OF ODC Plug FTTA Patch Cord

ODC fiber optic patch cables with extremely robust outdoor connector are designed to withstand harsh environment such as mechanical loads, high thermal exposure, and demanding environments like rain, salt and splash water. It is known for their ease of installation and highest operation safety due to the robust and ruggedized design. ODC military grade cables are installation-friendly for fixed or mobile applications and transmit reliably data over long distances under severe nvironmental conditions.
Specification OF ODC Plug FTTA Patch Cord
Fiber Core2,4
ModeSinglemodeMultimode
Operating Wavelength(nm)1310/1550850/1310
PolishmentUPCAPCUPC
Insertion Loss(Max.dB)0.70.6
Return Loss(Min.dB)556035
Mating times500 Min
Durability(Max.dB)0.2
Reaptability(Max.dB)0.5
Operating Temperature(℃)-40~+85
Storage Temperature(℃)-40~+85
Features OF ODC Plug FTTA Patch Cord
  • Robust fiber-optic connector for 2 and 4 channels with screwed mating mechanism
  • High shock, vibration, and mechanical resistance
  • IP68 protection, salt-mist proof and EMI protection
  • Easy, reliable and cost-effective installation.
  • Broad temperature range and wide range of indoor and outdoor cables
Application OF ODC Plug FTTA Patch Cord
  • Far transmission wireless base station.
  • Video Surveillance system
  • Optical fiber sensor.
  • Railway signal control
  • Intelligent substation
  • Outdoor & Military communication equipment connection.
  • Oil field, mine communication connection.

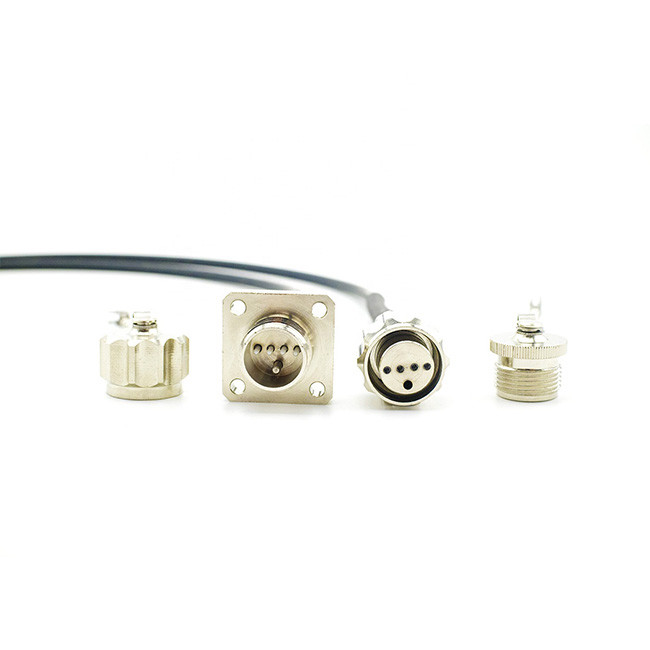

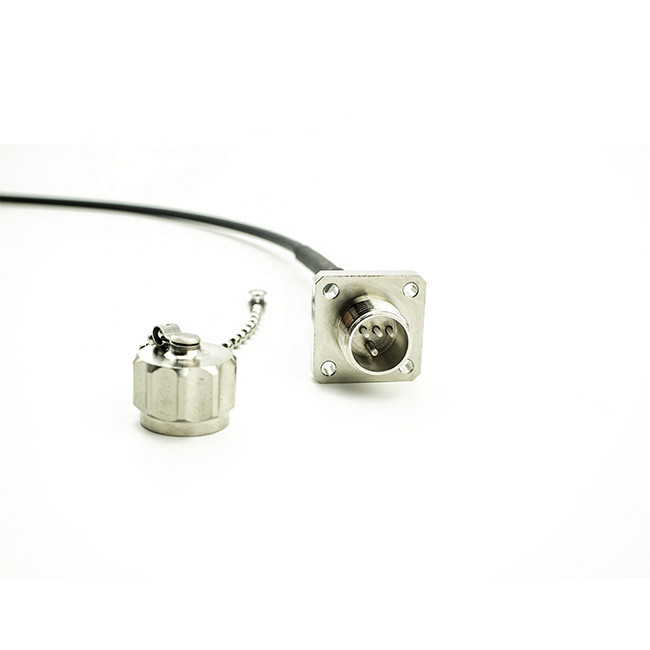

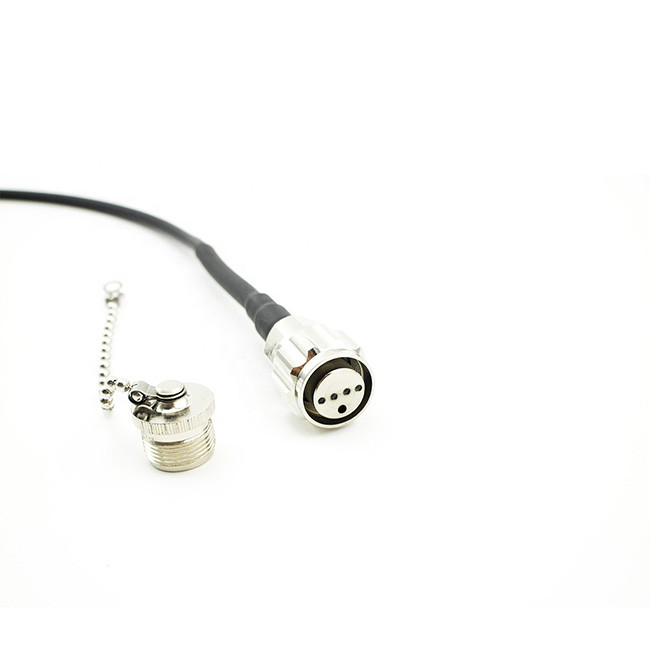

4 Core ODC Plug / Socket To LC Fiber Optical Patch Cord Cable Assembly4 Core ODC Plug / Socket To LC Fiber Optical Patch Cord Cable Assembly4 Core ODC Plug / Socket To LC Fiber Optical Patch Cord Cable Assembly

The reason why Choose us:

1. On time delivery

2. Factory outlet

3. Customization

4. Large product inventory with massive production line

5. Product distribution involves multi-fields, dozens of countries including some developed countries.

FAQ

1. Can I have a sample order of this product?

Yes, we welcome sample order for you to test and check the quality. Mixed samples are acceptable as well.

2. How to Store the Optical Fiber Cable Properly?

Store the drum indoor before using, the drum should place sideways not on the end.

3. What's your payment terms?

We accept T/T,L/C,Western Union,D/P etc. 30% in advance and 70% before shipment.

4. Are you factory direct?

As a professional Cable manufacturer, specialized in Fiber Optic Patch Cord, Fiber Optic PLC Splitter. Our products are mainly exported to Europe, South America, and some other countries and areas.

5. Is there any discount on the product?

We have several production promotion activities every month, welcome to inquire.
